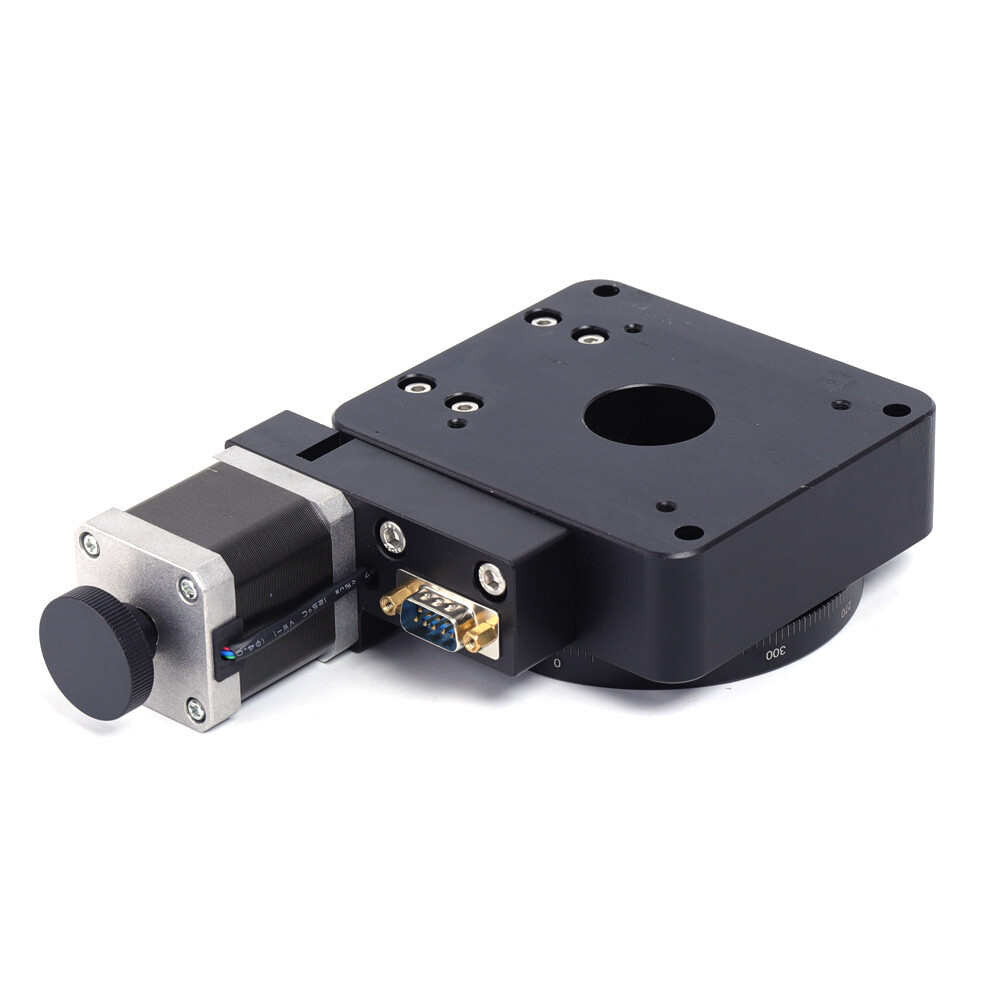

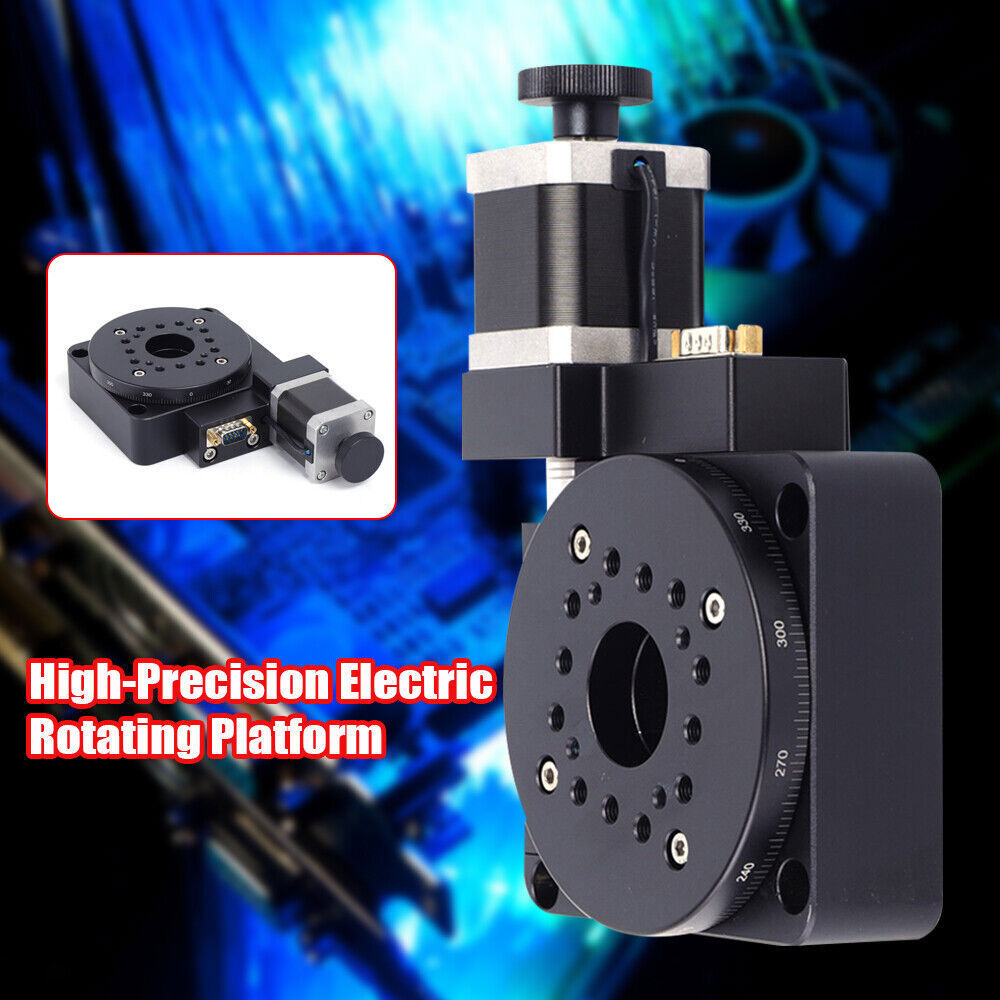

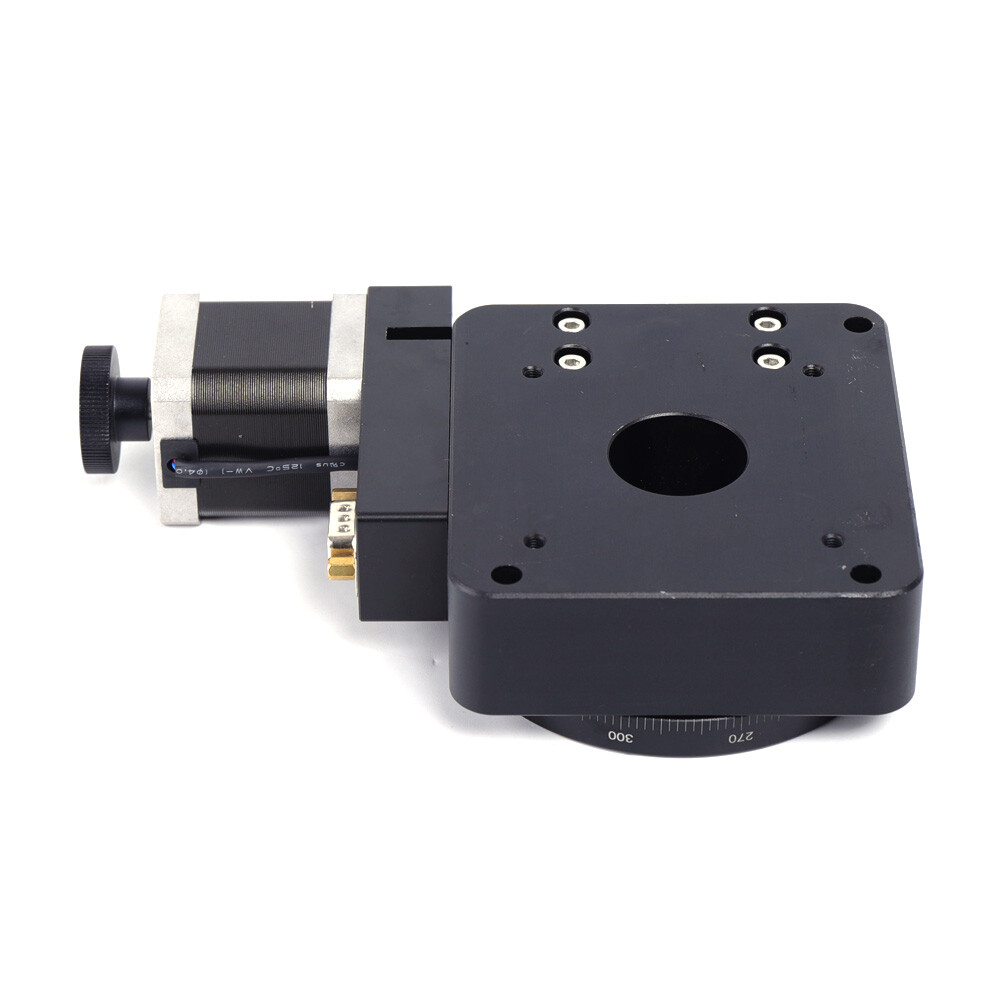

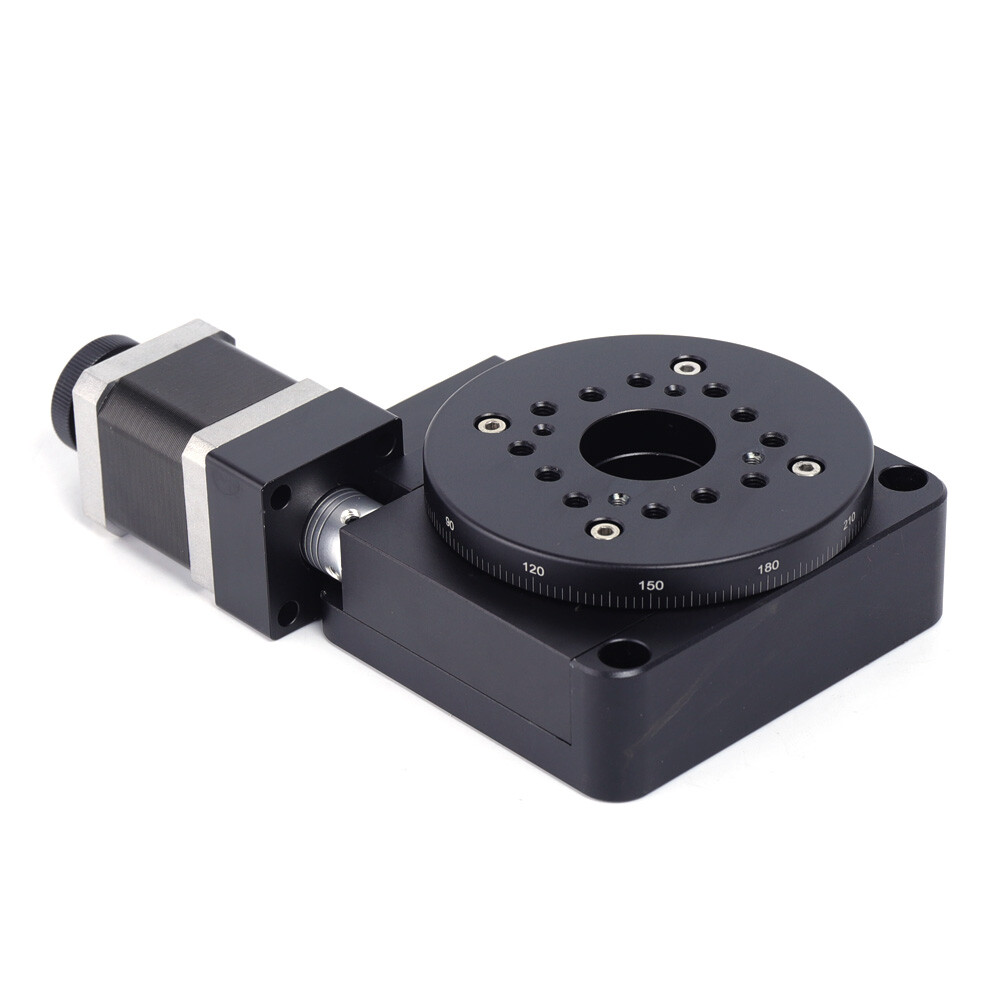

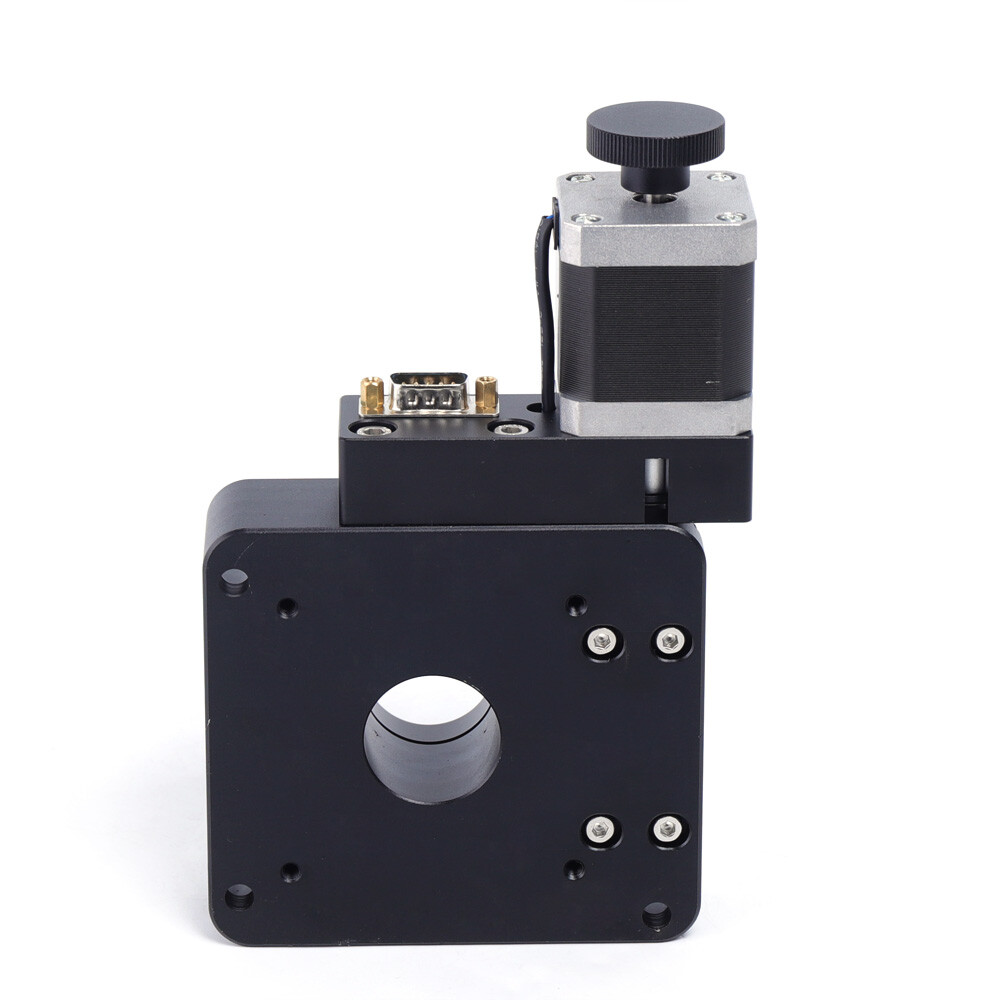

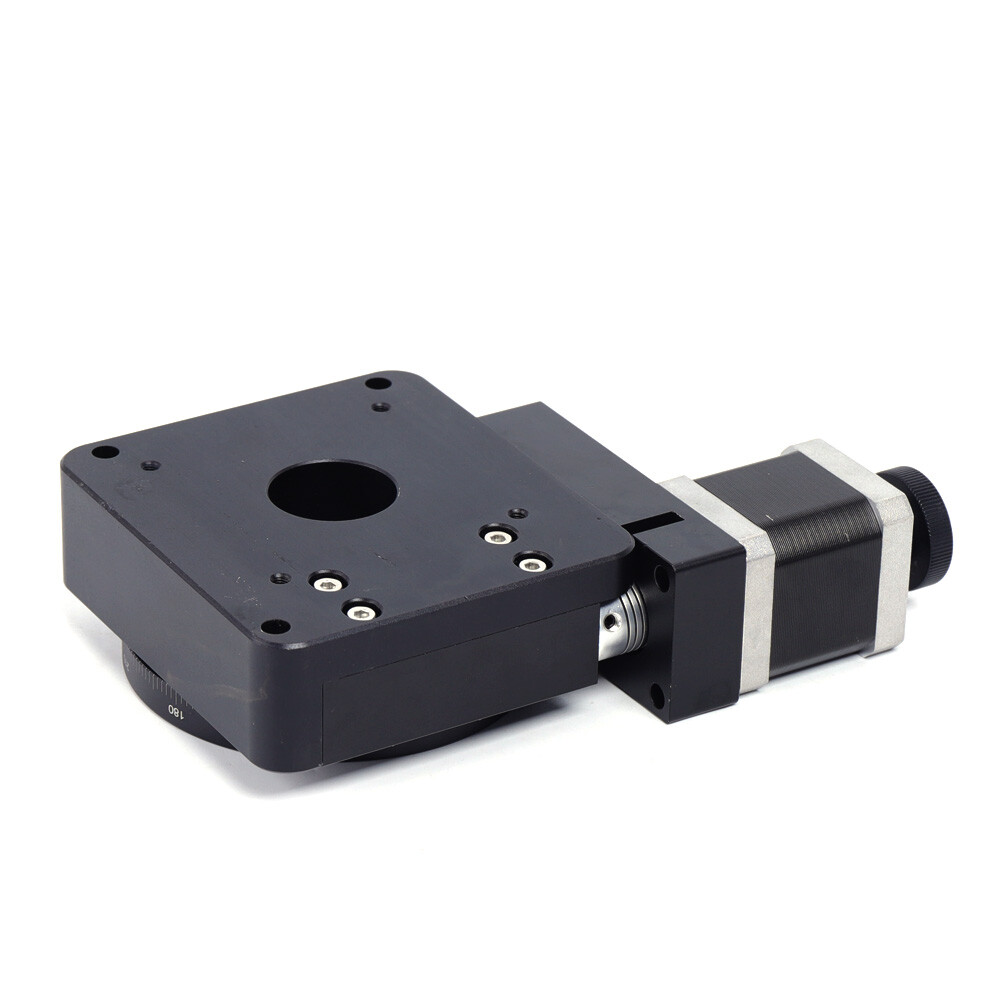

Electric Motorized Optical Rotation Platform 100mm Precision Stage

USD 307.70 USD

SKU: LAKXGApY

Brand: TBVECHI

MPN: DOESN NOT APPLY

Condition: New

Tags: 0.0005° 0.005° = 18" 0.01 0.01° = 36" 1.7kg 10μm 15μm 23*13*16cm 25 sec 2kg 360° 45KG 80μm Aluminum-black anodized bearing DOESN NOT APPLY HT03RA100 TBvechi Three years' warranty Φ100mm

Categories: Medical, Lab & Dental Supplies

Specifications

Warranty	Three years' warranty
Table Size	Φ100mm
Load	45kg
Itinerary	360°
Packing Size	231316cm
Parallelization	80μm
Resolution / Pulse(no Subdivision)	0.01 °
Recoil	0.005° = 18"
Material	Aluminum-black anodized
Top Board Beat	15μm
Weight	1.7kg
Guide Rail	bearing
Product Model	HT03RA100
Absolute On-axis Accuracy	0.01° = 36"
Repeatability	0.005° = 18"
Rotation Speed (maximum)	25° / sec
Gross Weight	2kg
Resolution / Pulse(20 Subdivisions)	0.0005°
Eccentricity	10μm
Lost Movement	0.005° = 18"
Brand	TBVECHI
MPN	DOESN NOT APPLY

The compact design allows for easy integration into existing systems. At just 1.7 kg, it boasts a remarkable maximum rotation speed of 25° per second and an absolute on-axis accuracy of 0.01° = 36".
