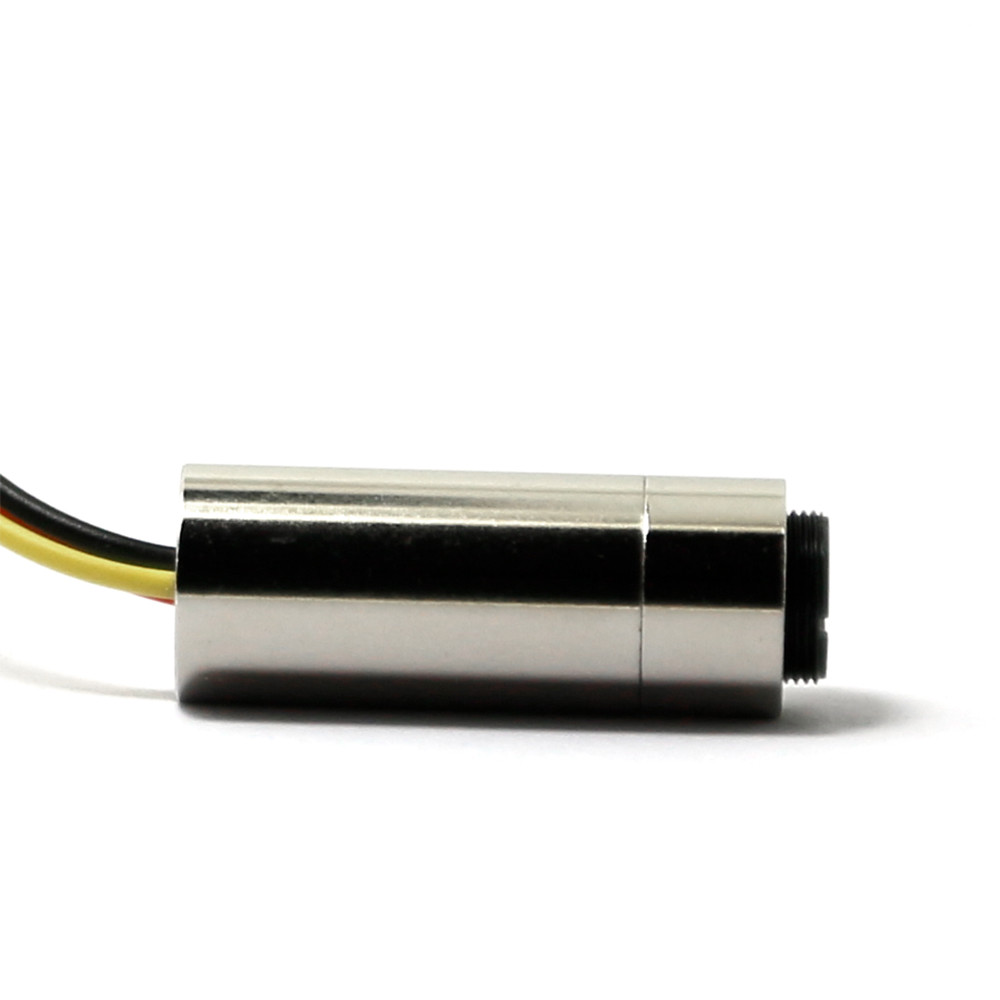

980nm 30mW Infrared IR Dot Laser 3-5VDC 12x35mm Diode Module with TTL 0-15KHZ
USD 5.52 USD
Specifications
| TTL Output | 0-15KHZ square wave |
| Brand | Q-BAIHE |
| Model | 980MD-30-1235-TTL |
| Operating Voltage | 3.0-5.0VDC |
| Wire Length | 250mm |
| EAN | 6256299533642 |
| Country/Region Of Manufacture | China |
| Yellow Wire | TTL "+" |
| Outlet Terminals | XH-2.54 * 3PIN |
| Dimensions | 12x35mm |
| Output Power | 30mw |
| Laser Shape | Dot |
| Wavelength | 980nm |
| Red Wire | Power supply "+" |
| MPN | 980MD-30-1235-TTL |
| UPC | 6256299533642 |
The 980nm Laser is invisible, but can be seen by 980nm display board, it will be displayed as a green dot on the board. Wavelength: 980nm. 1x Focusable 3-5VDC 980nm 30mW Infrared Dot Laser Diode Module with TTL 0-15KHZ.
